Pitching Stopper

  1. Install the pitching stopper.

    Tightening torque:

    T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

    T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

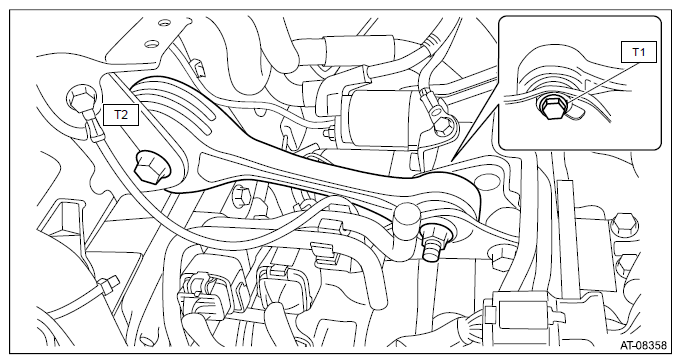

    Fig 1: Identifying Transmission Mounting System Pitching Stopper With Torque Specifications
    G10406844Courtesy of SUBARU OF AMERICA, INC.
  2. Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>INSTALLATION .
  3. Connect the battery ground terminal.
