Transmission Harness: Removal

Remove the transmission from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Automatic Transmission Assembly>REMOVAL .
Prepare for overhaul. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Preparation for Overhaul .
Remove the transmission harness ground terminal and remove the harness connectors from front wheel speed sensor and secondary speed sensor.

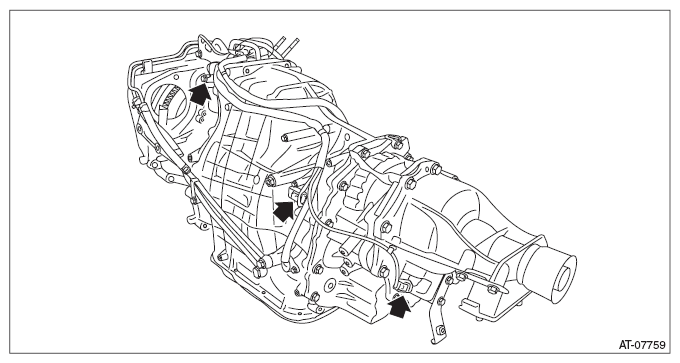

Fig 1: Locating Front Wheel Speed Sensor Transmission Harness Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness connectors from inhibitor switch, primary speed sensor and secondary pressure sensor.

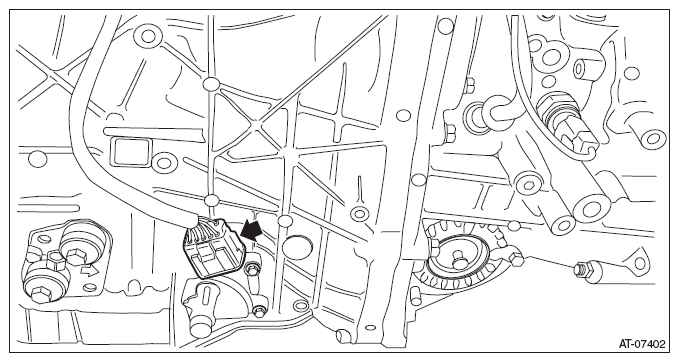

Fig 2: Locating Inhibitor Switch Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission harness stay.

Fig 3: Locating Transmission Harness Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove transmission harness connector and inhibitor harness connector from harness stay.
Remove the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Control Valve Body>REMOVAL .
Remove the mounting bolt to pull out the bushing of transmission harness from transmission case round hole.

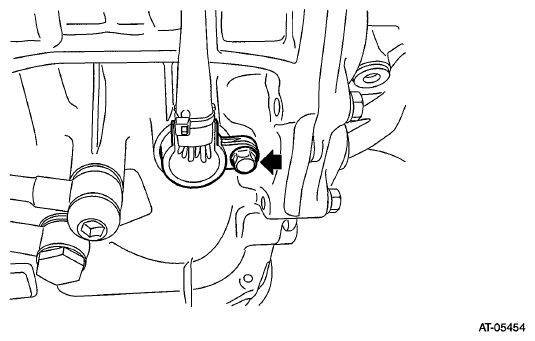

Fig 4: Locating Transmission Harness Bushing Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clip from transmission assembly.
