Transmission Case: Assembly

Install the CVTF filter.
NOTE:
- Use a new CVTF filter.
- Apply CVTF to the CVTF filter.
- Make sure that the CVTF filter does not protrude from the transmission case.

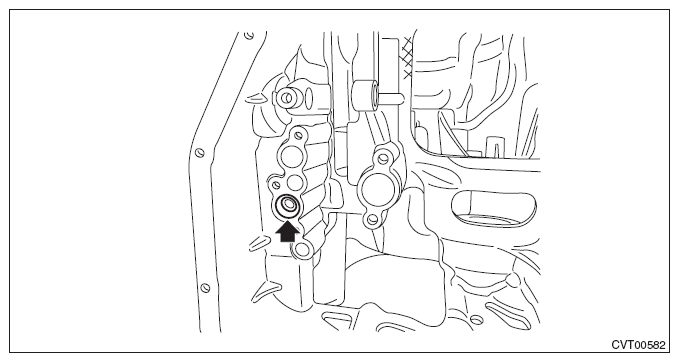

Fig 1: Locating Transmission Case CVTF Filter
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, install the oil seal.
ST 18657AA000 INSTALLER

Fig 2: Locating Transmission Case Oil Seal
Courtesy of SUBARU OF AMERICA, INC.
Using ST1 and ST2, install the ball bearing on the reduction gear side.
NOTE: Use a new ball bearing.

ST1 398177700 INSTALLER

ST2 499755602 PRESS SNAP RING

Fig 3: Installing Ball Bearing Onto Transmission Case Reduction Gear Side Using Special Tools
Courtesy of SUBARU OF AMERICA, INC.
Using ST1 and ST2, install the roller bearing on primary pulley side.
NOTE:
- Use a new roller bearing.
- Make adjustment so that the press gets in contact with the center of ST2.
ST1 398177700 INSTALLER

ST2 20299AG010 BASE

Fig 4: Installing Roller Bearing Onto Primary Pulley Side Using Special Tools
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring on primary pulley side.
NOTE: Use new snap rings.

Fig 5: Identifying Transmission Case Primary Pulley Side Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Using ST1 and ST2, install the roller bearing on secondary pulley side.
NOTE:
- Use a new roller bearing.
- Make adjustment so that the press gets in contact with the center of ST2.
ST1 398177700 INSTALLER

ST2 499755602 PRESS SNAP RING

Fig 6: Installing Roller Bearing Onto Secondary Pulley Side Using Special Tools
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring on secondary pulley side.
NOTE: Use new snap rings.

Fig 7: Identifying Transmission Case Secondary Pulley Side Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Install all plugs.
NOTE: Use new gaskets and O-rings.

Tightening torque:

T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

T2: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

T3: 35 N.m (3.5 kgf-m, 25.8 ft-lb)

Fig 8: Identifying Transmission Case Plugs With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Install the lubrication pipe and O-ring.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-rings.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Fig 9: Locating Transmission Case Lubrication Pipe And O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Install the CVTF inlet pipe and CVTF outlet pipe.
NOTE: Use a new gasket.

Tightening torque:

T1: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

T2: 40 N.m (4.1 kgf-m, 29.5 ft-lb)

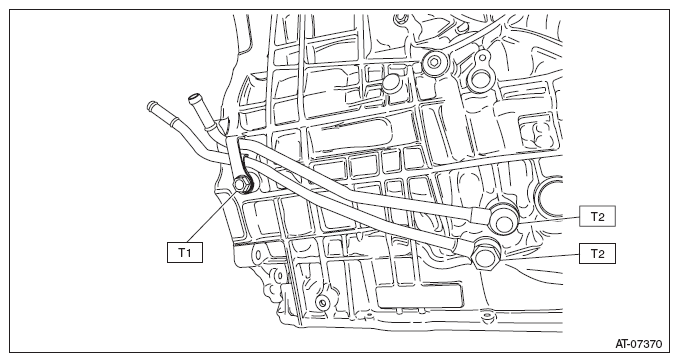

Fig 10: Identifying CVTF Inlet And Outlet Pipes With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.
