Transfer Reduction Driven Gear: Disassembly

Using the ST, remove the ball bearing (large) from transfer reduction driven gear.
ST1 899864100 REMOVER

ST2 398497701 SEAT

ST3 498077600 REMOVER

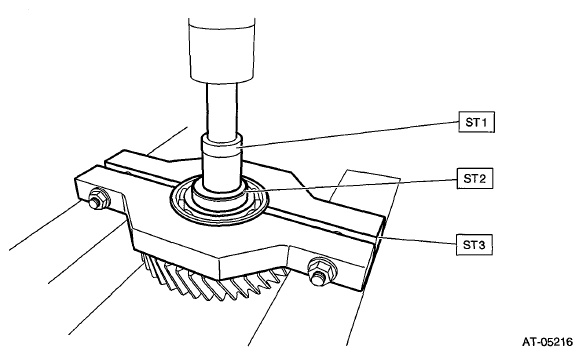

Fig 1: Removing Transfer Reduction Driven Gear Ball Bearing Using ST (Large)
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the ball bearing (small) from transfer reduction driven gear.
ST1 899864100 REMOVER

ST2 398497701 SEAT

ST3 18720AA000 REMOVER

Fig 2: Removing Transfer Reduction Driven Gear Ball Bearing Using ST (Small)
Courtesy of SUBARU OF AMERICA, INC.
