Reduction Driven Gear: Disassembly

Remove the bearing retainer using ST1, ST2 and ST3.
ST1 899864100 REMOVER

ST2 398497701 SEAT

ST3 18767AA000 BEARING REMOVER

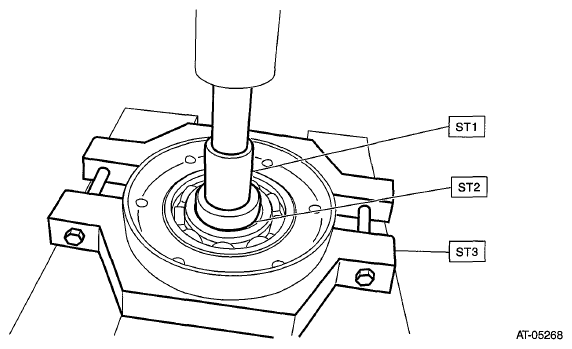

Fig 1: Removing Reduction Driven Gear Bearing Retainer Using Special Tools
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring.

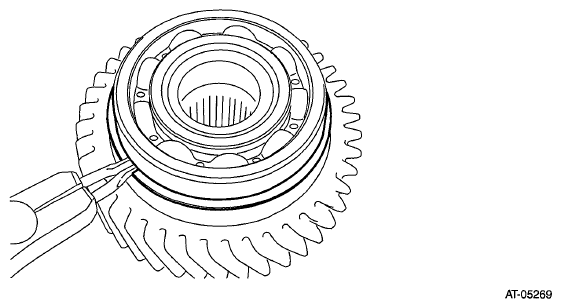

Fig 2: Removing Reduction Driven Gear Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing using ST1, ST2 and ST3.
ST1 899864100 REMOVER

ST2 398497701 SEAT

ST3 498077600 REMOVER

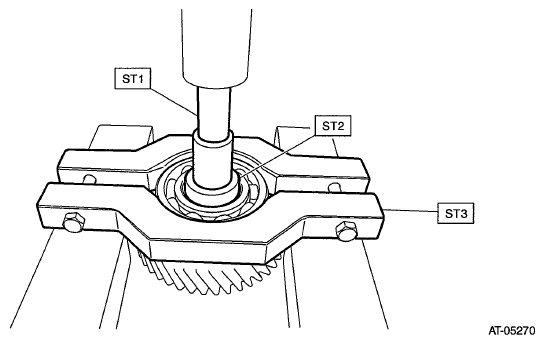

Fig 3: Removing Reduction Driven Gear Using Special Tools
Courtesy of SUBARU OF AMERICA, INC.
