Reduction Driven Gear: Assembly

Using the ST, install the ball bearing to bearing retainer.
ST 398177700 INSTALLER
NOTE:
- Use a new ball bearing.
- Make sure to install the ball bearing in the right direction.
- Apply CVTF to the press-fitting area.

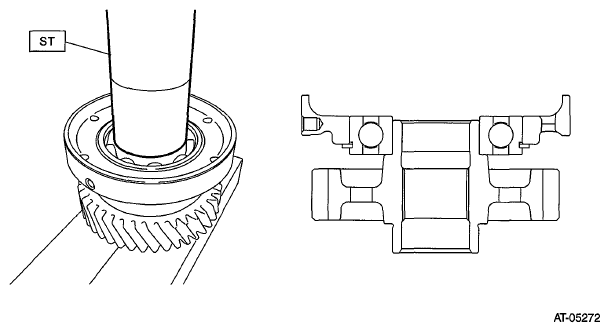

Fig 1: Installing Reduction Driven Gear Ball Bearing Onto Bearing Retainer Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring.
Using the ST, install the reduction driven gear.
ST 499277200 INSTALLER

Fig 2: Installing Reduction Driven Gear Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
