Rear Drive Shaft: Disassembly

  1. Remove the ball bearing using ST.

    ST 498077600 REMOVER

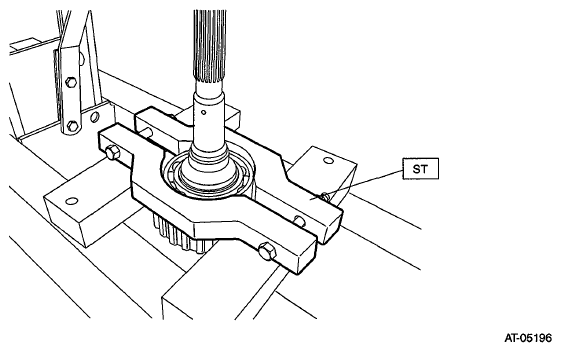

Fig 1: Removing Rear Drive Shaft Ball Bearing Using ST
G06654505Courtesy of SUBARU OF AMERICA, INC.
