Oil Pump Chain: Removal

Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Automatic Transmission Assembly>REMOVAL .
Remove the torque converter assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Torque Converter Assembly>REMOVAL .
Remove the oil pump chain cover.

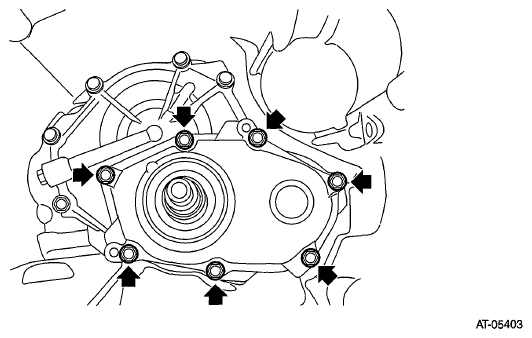

Fig 1: Locating Oil Pump Chain Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.

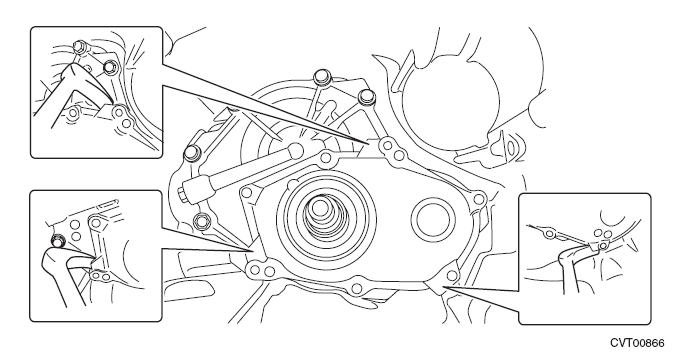

Fig 2: Removing Oil Pump Chain Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the seal ring from center support COMPL.

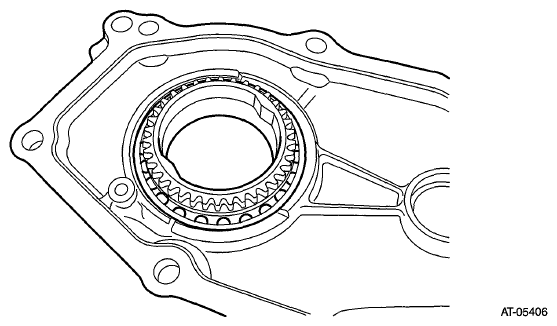

Fig 3: Locating Center Support COMPL Seal Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the driven sprocket from oil pump chain cover to remove the oil pump chain.
NOTE: The driven sprocket is replaced as an assembly only, because it is a non-disassembly part.

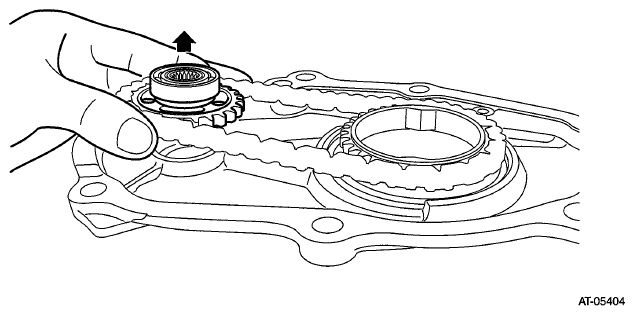

Fig 4: Removing Oil Pump Chain Driven Sprocket
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring.

Fig 5: Identifying Oil Pump Chain Sprocket
Courtesy of SUBARU OF AMERICA, INC.
Remove the drive sprocket.

Fig 6: Identifying Oil Pump Chain Drive Sprocket
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal from the oil pump chain cover.
