Inhibitor Switch: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery.
  3. Lift up the vehicle.
  4. Remove the snap pin and washer.

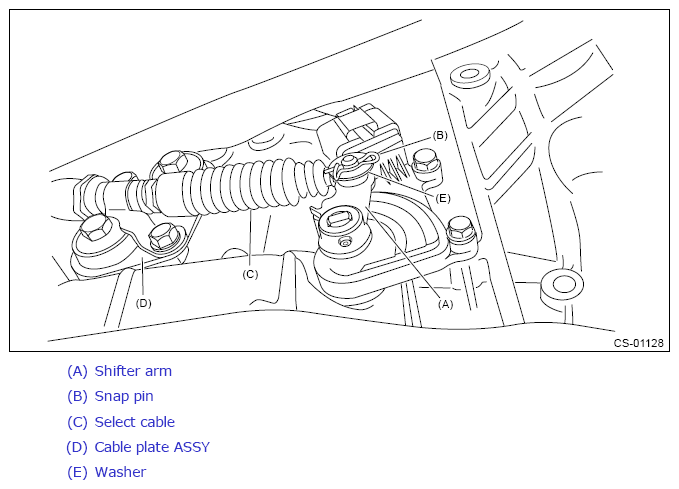

    Fig 1: Identifying Shifter Arm, Snap Pin, Select Cable, Cable Plate Assembly And Washer
    G11266043Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the spring pin and shifter arm.

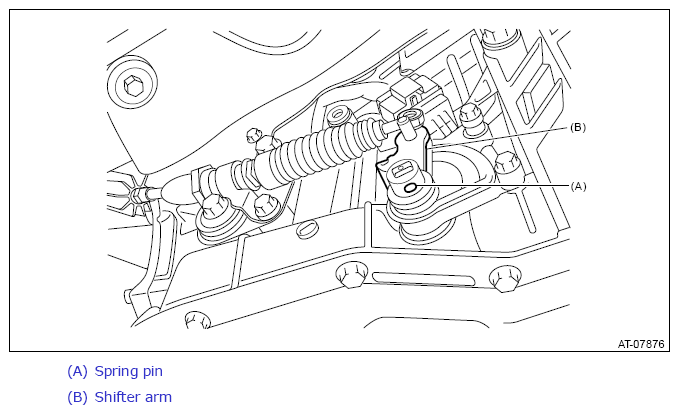

    Fig 2: Identifying Spring Pin And Shifter Arm
    G11266044Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the inhibitor harness connector from inhibitor switch.
  7. Remove the two inhibitor switch securing bolts.
    Fig 3: Locating Inhibitor Switch Securing Bolts
    G07913384Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the inhibitor switch.
