Forward Clutch Assembly And Reduction Driven Gear

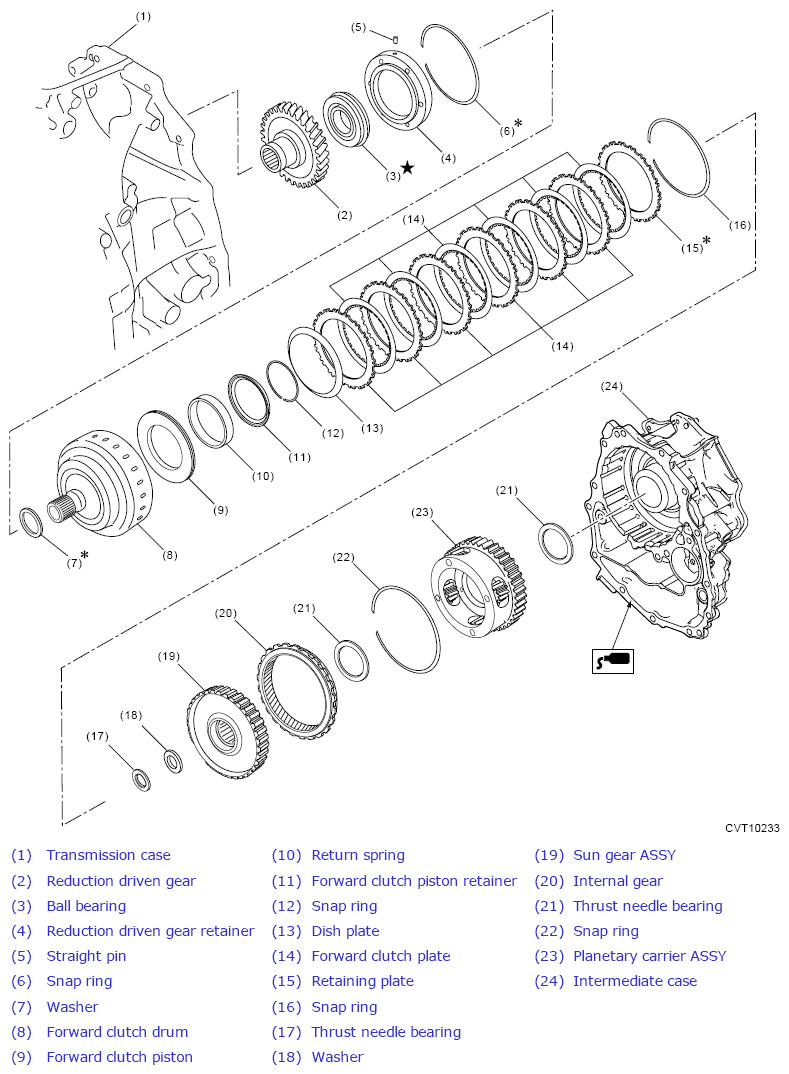

Fig 1: Exploded View Of Forward Clutch Assembly And Reduction Driven Gear Components

G11265904

Courtesy of SUBARU OF AMERICA, INC.
