CVTF Cooler (With Warmer Feature)

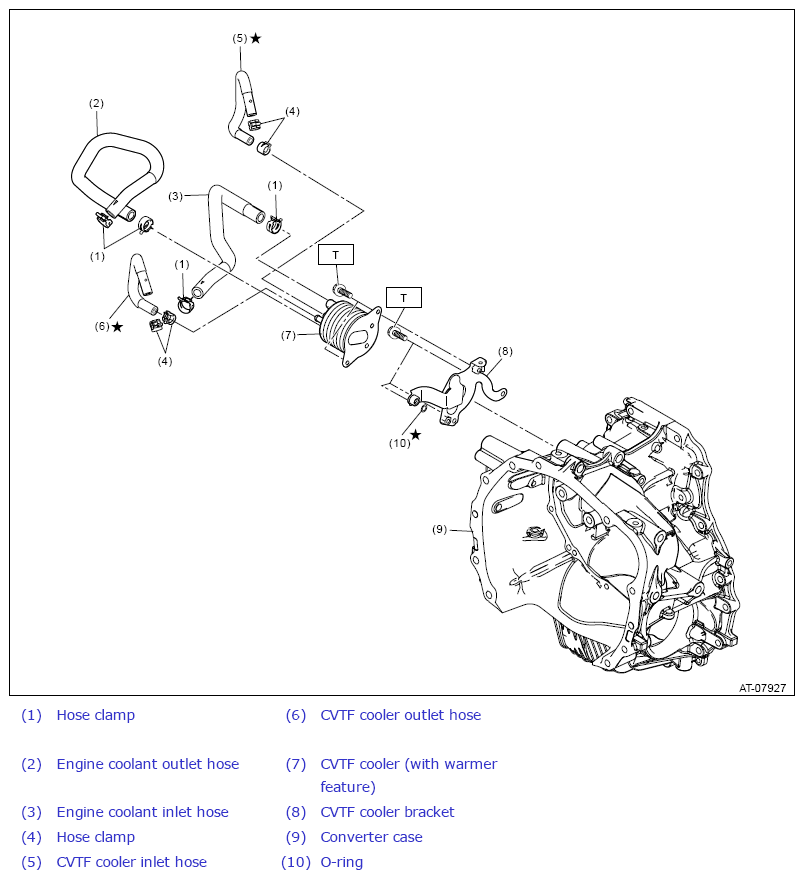

Fig 1: Exploded View Of CVTF Cooler Components With Torque Specifications (Warmer Feature)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 23 (2.3, 17.0)
