Front Reduction Driven Gear: Disassembly

1. Remove the front reduction driven shaft from the front reduction driven gear.
2. Remove the snap ring.

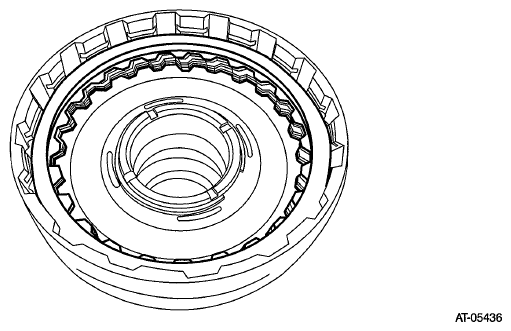

   Fig 1: Identifying Front Reduction Driven Gear

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove the retaining plate, drive plate, driven plate and dish plate.
   Fig 2: Identifying Front Reduction Driven Gear Retaining Plate, Drive Plate, Driven Plate And Dish Plate

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the seal ring from front reduction driven shaft.
   Fig 3: Locating Front Reduction Driven Shaft Seal Rings

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the ball bearing, while tapping the entire circumference around the ball bearing outer race a little at a time through the front reduction driven shaft hole using the round bar with diameter of 7 mm (0.28 in).

Fig 4: Removing Front Reduction Driven Shaft Ball Bearing From Hole Using Round Bar

Courtesy of SUBARU OF AMERICA, INC.
