Forward Clutch Assembly: Disassembly

Remove the planetary carrier assembly.

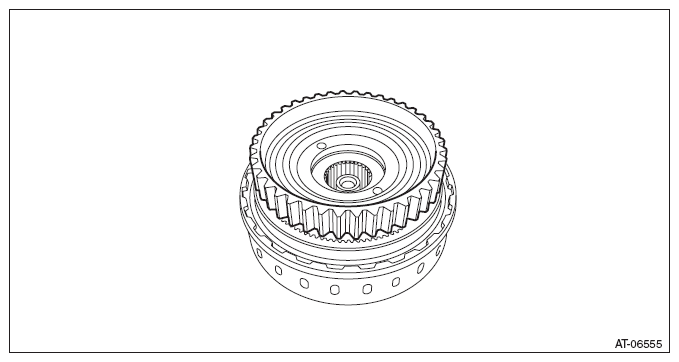

Fig 1: Identifying Forward Clutch Assembly Planetary Carrier Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust needle bearing.

Fig 2: Identifying Forward Clutch Assembly Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring.
NOTE: Use marking or labeling to the upper snap ring for measurement of the snap ring thickness when selecting the retaining plate.

Fig 3: Locating Forward Clutch Assembly Upper And Lower Snap Rings
Courtesy of SUBARU OF AMERICA, INC.
Remove the internal gear.

Fig 4: Identifying Forward Clutch Assembly Internal Gear
Courtesy of SUBARU OF AMERICA, INC.
Remove the sun gear.

Fig 5: Identifying Forward Clutch Assembly Sun Gear
Courtesy of SUBARU OF AMERICA, INC.
Remove the washer.

Fig 6: Removing Forward Clutch Assembly Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust needle bearing.

Fig 7: Identifying Forward Clutch Assembly Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring.

Fig 8: Locating Forward Clutch Assembly Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the retaining plate, drive plate, driven plate and dish plate.

Fig 9: Identifying Forward Clutch Assembly Retaining Plate, Drive Plate, Driven And Dish Plate
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the snap ring.
ST 18762AA000 or 18762AA001 COMPRESSOR SPECIAL TOOL

Fig 10: Removing Forward Clutch Assembly Snap Ring Using ST
Courtesy of SUBARU OF AMERICA, INC.
Remove the forward clutch piston retainer.

Fig 11: Identifying Forward Clutch Assembly Piston Retainer
Courtesy of SUBARU OF AMERICA, INC.
Remove the return spring.

Fig 12: Identifying Forward Clutch Assembly Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the forward clutch piston by blowing compressed air intermittently from end of forward clutch drum.

Fig 13: Blowing Compressed Air From Forward Clutch Drum End

Courtesy of SUBARU OF AMERICA, INC.
