Forward Clutch Assembly: Adjustment

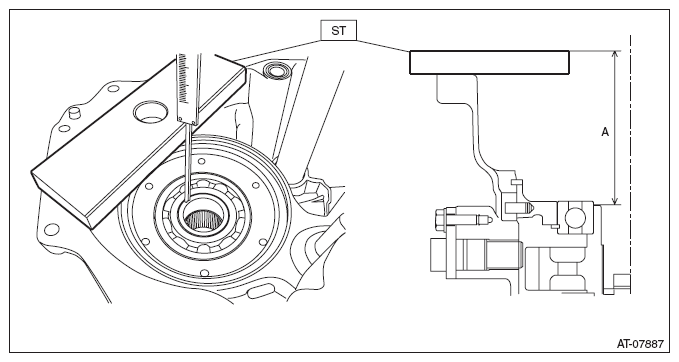

Measure depth "A" from the ST upper face to the washer catch surface.
ST 398643600 GAUGE

Fig 1: Checking Forward Clutch Assembly ST Upper Face And Washer Catch Surface Depth
Courtesy of SUBARU OF AMERICA, INC.
Install the forward clutch assembly to intermediate case.

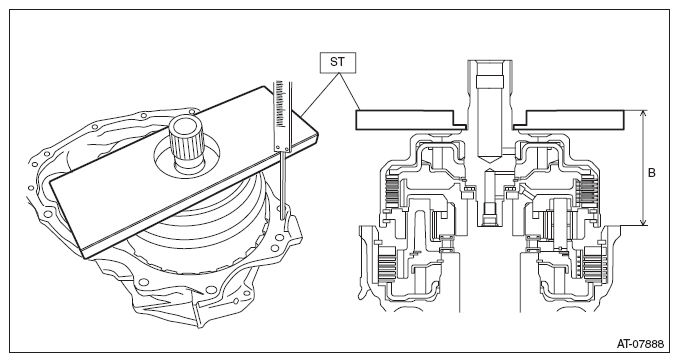

Setting the ST, measure height "B" from the ST upper side to the intermediate case mating surface.
ST 499575600 GAUGE

Fig 2: Checking ST Upper Side And Intermediate Case Mating Surface Height
Courtesy of SUBARU OF AMERICA, INC.
Obtain the thickness of washer using the following formula.
Calculation formula:

T (mm) = (A - 15) - (B - 15) - (0.35-0.70)

[T (in) = (A - 0.591) - (B - 0.591) - (0.014-0.028)]

T: Washer thickness

A: Depth from the ST upper face to the washer catch surface

B: Height from the upper surface of the ST to the mating surface of the intermediate case 15 mm (0.591 in): Thickness of ST

0.35-0.70 mm (0.014-0.028 in): Clearance
Select the washer to meet the value "T" obtained from step 4).
