Drive Plate: Removal

  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Automatic Transmission Assembly>REMOVAL .
  2. Set the ST.
    NOTE: Set the ST to the drive plate referring to the illustration.

    ST 498497300 CRANKSHAFT STOPPER

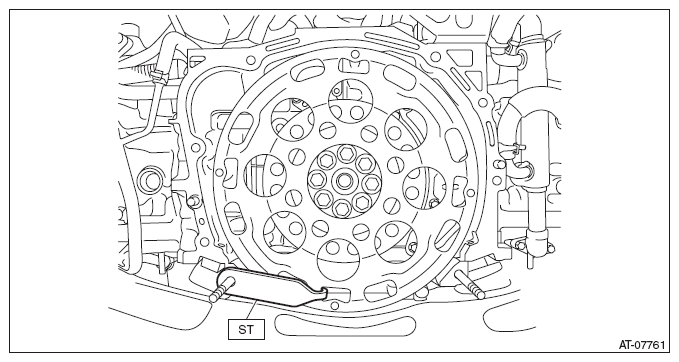

    Fig 1: Installing Special Tool With Drive Plate
    G09482058Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the drive plate and reinforcement drive plate.
