Converter Case: Disassembly

  1. Remove the CVTF cooler pipe COMPL.

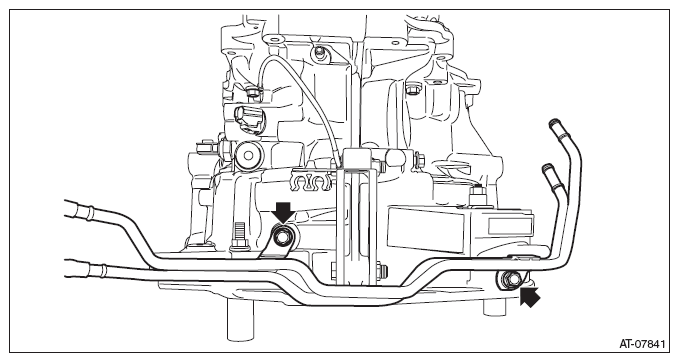

    Fig 1: Locating CVTF Cooler Pipe COMPL
    G09482366Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the pitching stopper bracket and transmission radio ground cord, if mounted.
  3. Remove the oil drain plug and overflow drain plug. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Differential Gear Oil>REPLACEMENT .
  4. Remove all plugs.

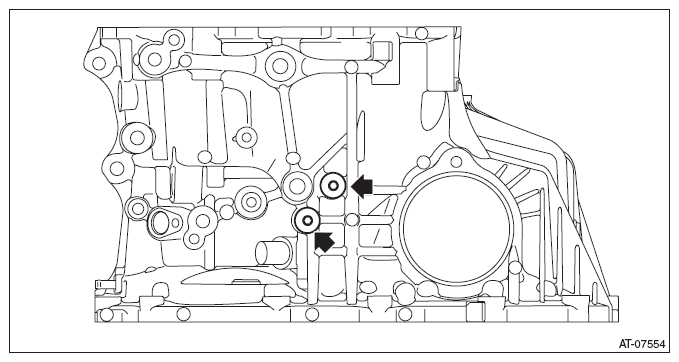

Fig 2: Locating Converter Case Plugs
G09482367Courtesy of SUBARU OF AMERICA, INC.
