CVTF Cooler (With Warmer Function): Disassembly

  1. Remove each hose.

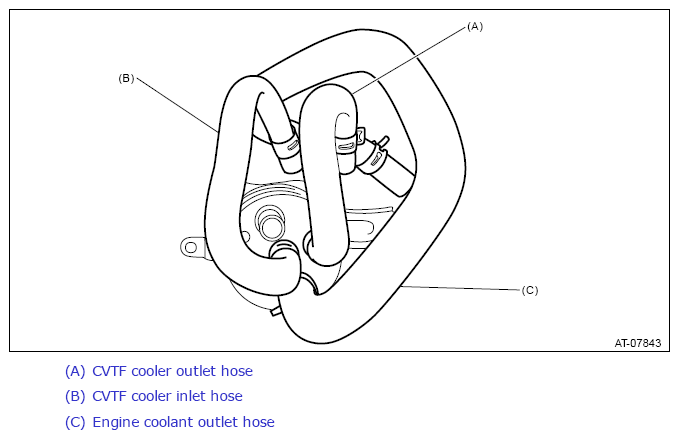

    Fig 1: Identifying CVTF Cooler Hoses
    G11266100Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the bracket.
    Fig 2: Identifying CVTF Cooler Bracket
    G09482053Courtesy of SUBARU OF AMERICA, INC.
