CVTF Cooler (With Warmer Function): Assembly

Attach the bracket.
Tightening torque:

23 N.m (2.3 kgf-m, 17.0 ft-lb)

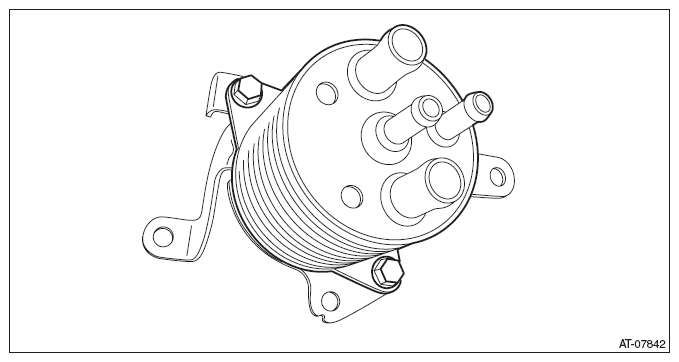

Fig 1: Identifying CVTF Cooler Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install each hose.
NOTE:
- Use a new CVTF cooler hose.
- Install so that the CVTF cooler hose is not folded over, excessively bent or twisted.
- Insert the CVTF cooler hose to the specified position in the proper direction.

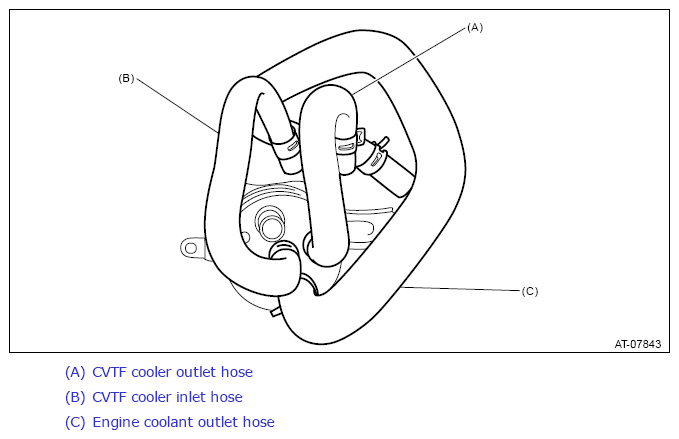

Fig 2: Identifying CVTF Cooler, Engine Coolant Inlet And Outlet Hoses
