Air Breather Hose: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .
  3. Remove the two air breather hoses.

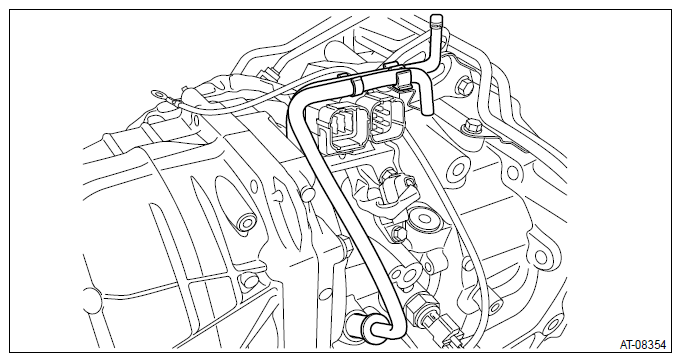

    Fig 1: Identifying CVTF Air Breather Hose
    G10406934Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the oil cap.
Fig 2: Identifying CVTF Air Breather Hose Oil Cap
G09482057Courtesy of SUBARU OF AMERICA, INC.
