Components With Torque Specifications

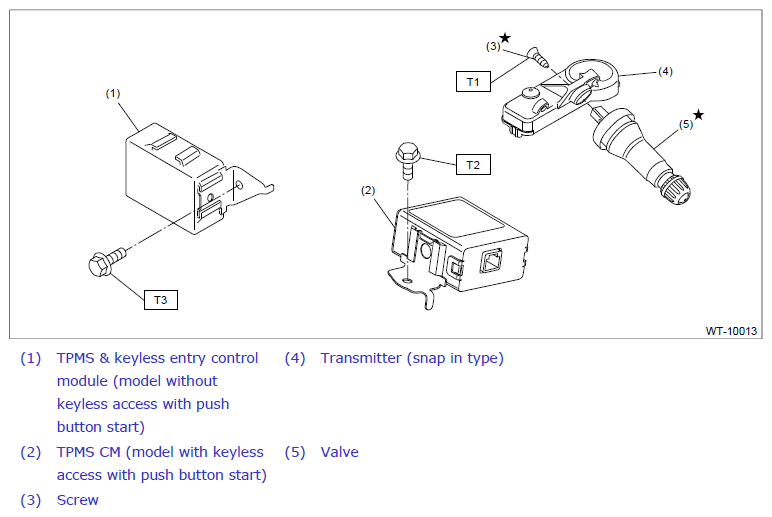

Fig 1: Identifying TPMS And Keyless Entry Control Module Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.4 (0.14, 1)

T2: 7.5 (0.76, 5.5)

T3: 13 (1.33, 9.6)

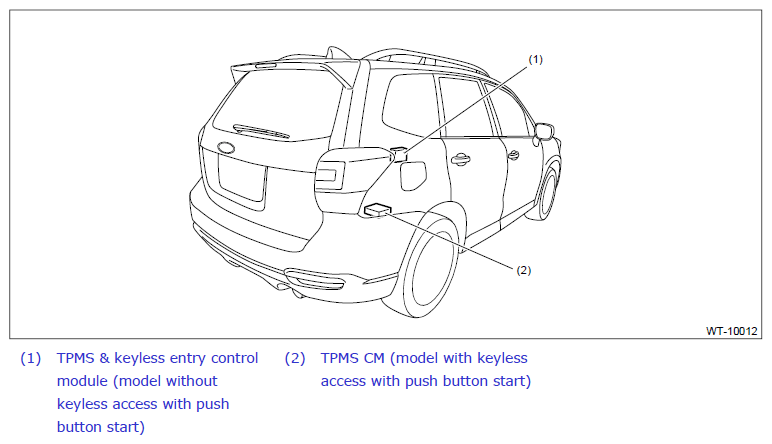

Fig 2: Identifying TPMS And Keyless Entry Control Modules

Courtesy of SUBARU OF AMERICA, INC.
