DTC C2324 Transmitter 4 Function Code Abnormal

DTC DETECTING CONDITION:

Unexpected function codes received from each transmitter.

Trouble symptom:

Tire pressure warning light blinks 25 times and then illuminates.

CAUTION: When driving vehicle to perform driving test, there should be always 2 persons (driver and checker) to check.

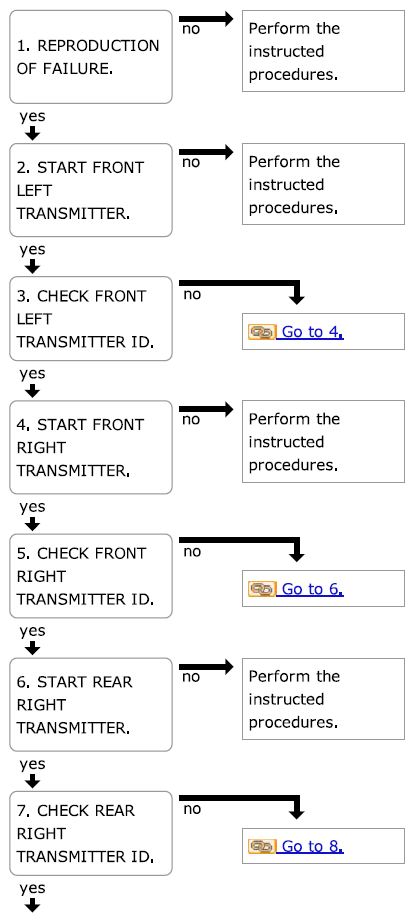

Fig 1: Tire Pressure Monitor Diagnosis Flowchart (Transmitter 4 Function Code Abnormal) - 1 Of 2

Courtesy of SUBARU OF AMERICA, INC.

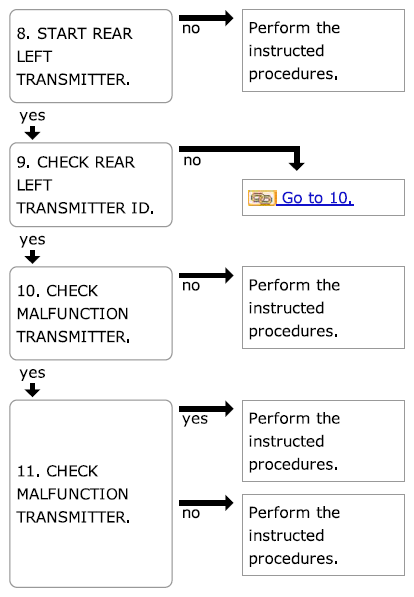

Fig 2: Tire Pressure Monitor Diagnosis Flowchart (Transmitter 4 Function Code Abnormal) - 2 Of 2

Courtesy of SUBARU OF AMERICA, INC.
