DTC C2224 Transmitter 4 Pressure Data Abnormal

DTC DETECTING CONDITION:

Data from each transmitter is not received for 8 minutes.

Trouble symptom:

Tire pressure warning light blinks 25 times and then illuminates.

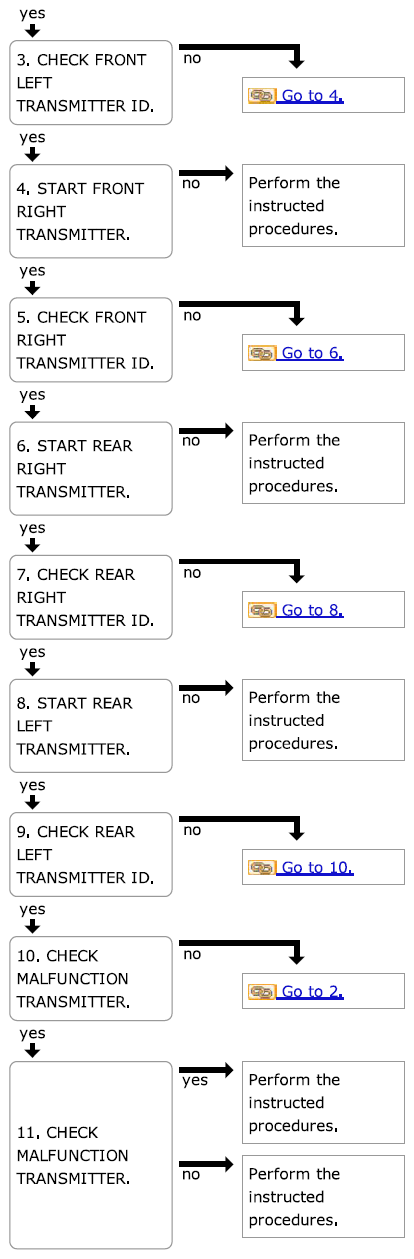

Fig 1: Tire Pressure Monitor Diagnosis Flowchart (Transmitter 4 Pressure Data Abnormal) - 1 Of 2

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Tire Pressure Monitor Diagnosis Flowchart (Transmitter 4 Pressure Data Abnormal) - 2 Of 2

Courtesy of SUBARU OF AMERICA, INC.
