Upper Arm: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the rear sub frame assembly. Ref. to REAR SUSPENSION>Rear Sub Frame>REMOVAL .
  3. Remove the bolts and nuts to remove the upper arm assembly.

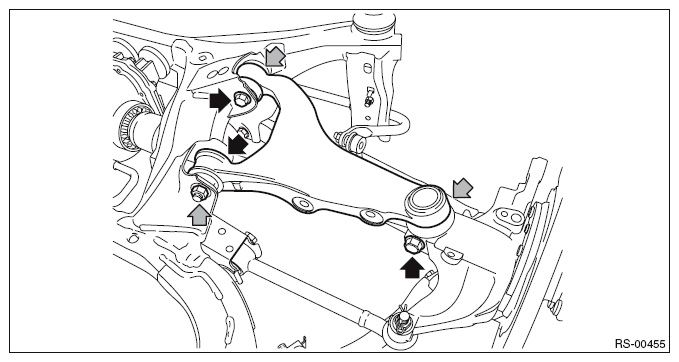

Fig 1: Locating Upper Arm Assembly Bolts And Nuts
G09482988Courtesy of SUBARU OF AMERICA, INC.
