Home >> Subaru >> 2017 >> Forester 2.0XT Touring >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Rear Trailing Link >> Removal

Rear Trailing Link: Removal

  1. Lift up the vehicle, and then remove the rear wheels.
  2. Remove the bolts and nuts, and then remove the trailing link.

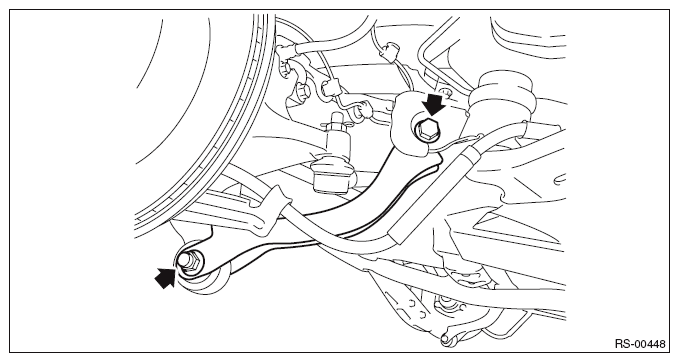

Fig 1: Locating Rear Trailing Link Bolts And Nuts
G09482985Courtesy of SUBARU OF AMERICA, INC.
