Rear Stabilizer: Removal

  1. Lift up the vehicle, and then remove the rear wheels.
  2. Remove the rear stabilizer.
    1. Remove the left and right stabilizer links.
    2. Detach the clamp - stabilizer bushing and remove the rear stabilizer.

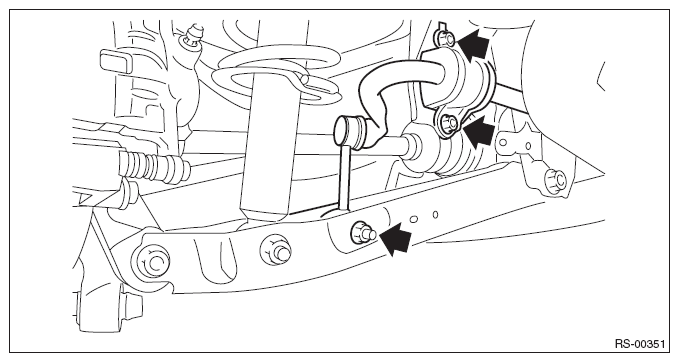

Fig 1: Locating Rear Stabilizer Bolts
G07914009Courtesy of SUBARU OF AMERICA, INC.
