Rear Shock Absorber

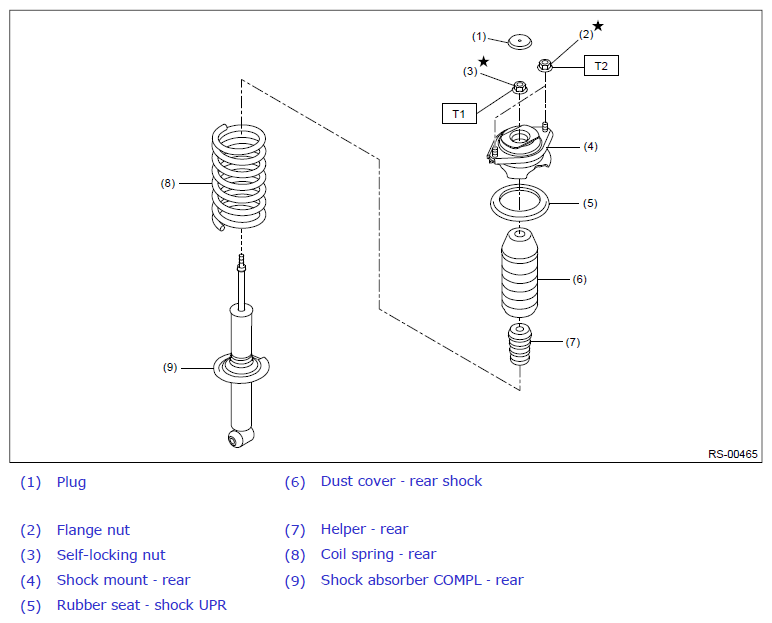

Fig 1: Identifying Rear Shock Absorber Components With Torque Specifications
G11269822Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.55, 18.4)

T2: 30 (3.06, 22.1)
