Wheel Arch Height
- Park the vehicle on a level surface.
- Empty the vehicle so that it is at "curb weight". (Empty the cargo room, load the spare tire, jack and service tools, and fill up the fuel tank.)
- Set the steering wheel in a straight-ahead position, and stabilize the suspension by moving the vehicle in a straight line for 5 m (16 ft) or more.

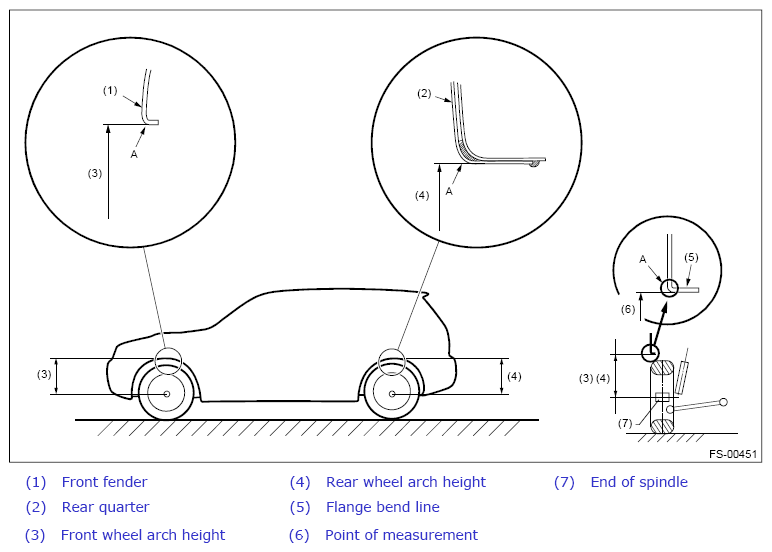

- Suspend a thread from the wheel arch (point "A" in the figure below) and affix at a position directly above the center of wheel.
- Measure the distance between the point "A" and the center of wheel.
Courtesy of SUBARU OF AMERICA, INC.
| Wheel arch height specification mm (in) (tolerance: +12 mm -24 mm (+0.47 in -0.94 in)) |
| Tire size |
P225/60R17 |
P225/55R18 |
| Front |
444 (17.48) |
| Rear |
458 (18.03) |
