Front Camber

Adjust the camber angle to the following value.

Tire size	Camber (difference between RH and LH 35' or less)
P225/60R17 P225/55R18	-0°00'±0°30'

Loosen the two flange nuts located at the front lower section of the strut.
NOTE: When the adjusting bolt needs to be loosened or tightened, hold its head with a wrench and turn the flange nut.

Turn the camber adjusting bolt so that the camber is set at specification.

NOTE: Moving the adjusting bolt by one scale changes the camber by approximately 0°15'.

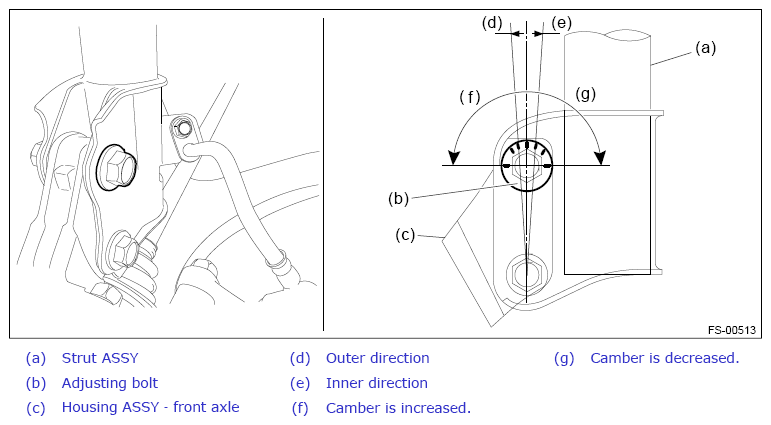

Fig 1: Setting Wheel Front Camber Angle

Courtesy of SUBARU OF AMERICA, INC.

To increase camber.
Rotate the left side counterclockwise.	Rotate the right side clockwise.

To decrease camber.
Rotate the left side clockwise.	Rotate the right side counterclockwise.

Tighten two new flange nuts.
Tightening torque:

155 N.m (15.81 kgf-m, 114.3 ft-lb)
