Front Crossmember Support Plate: Removal

1. Lift up the vehicle.
2. Remove the under cover COMPL - front. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .
3. Remove the under cover front - transmission. (Non-turbo model)
4. Remove the bolt, and remove the front crossmember support.

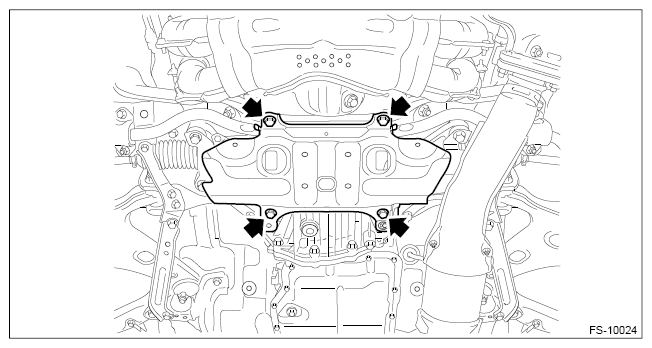

Fig 1: Locating Front Crossmember Support Bolts

Courtesy of SUBARU OF AMERICA, INC.
