Front Arm: Removal

  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the under cover COMPL - front. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .
  3. Remove the front arm assembly.
    1. Remove the bolt, and then detach the front support.
    2. Remove the bolts and nuts, and then remove the front arm rear plate.
    3. Remove the nut and disconnect the stabilizer link.
    4. Pull out the cotter pin (a), remove the castle nut (b), and remove the ball joint from front arm assembly.
    5. Remove the nuts, pull out the flange bolt, and remove the front arm assembly.

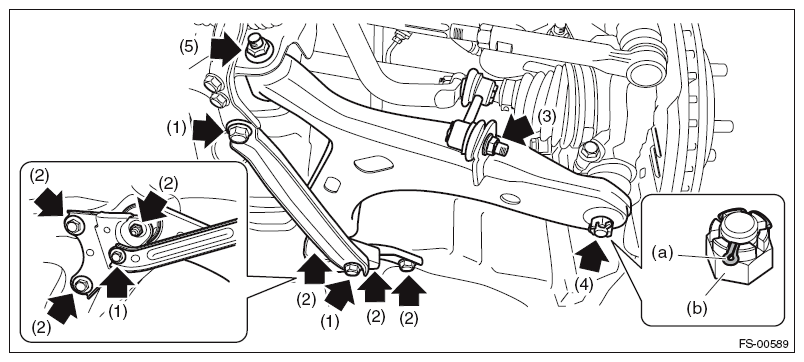

Fig 1: Locating Front Arm Assembly Nuts And Bolts Loosening Sequence
G09482931Courtesy of SUBARU OF AMERICA, INC.
