Bushing Front - Front Arm

1. Put an alignment mark on the front arm assembly based on the split portion of the bushing intermediate plate of the busing front - front arm.
   CAUTION: Always put an alignment mark for aligning the position on bushing installation.

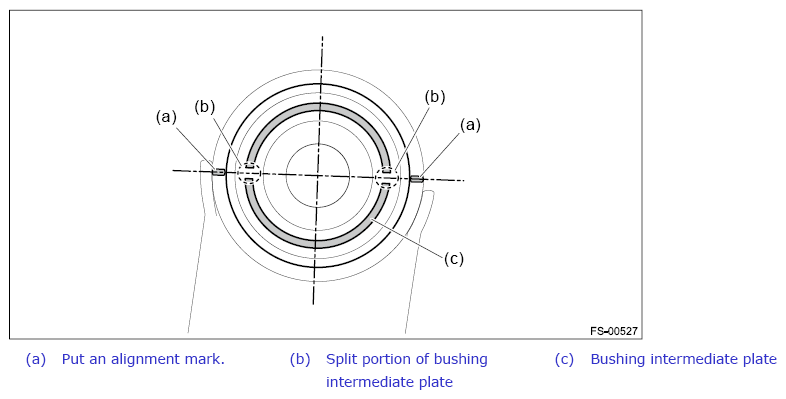

   Fig 1: Identifying Front Arm Bushing Alignment Marks

   Courtesy of SUBARU OF AMERICA, INC.
2. Using the ST and a press, remove the busing front - front arm.

Preparation tool:

ST: INSTALLER & REMOVER SET (927680000)

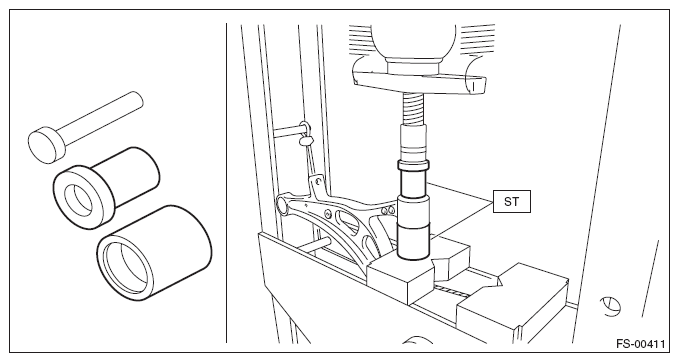

Fig 2: Removing Front Arm Bushing Using Special Tool And Press (Front)

Courtesy of SUBARU OF AMERICA, INC.
