Universal Joint: Removal

Adjust the tilt position of the column assembly - steering to the lowest position and lock the tilt lever.

Fig 1: Locking Steering Column Assembly Tilt Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the universal joint assembly - steering.
1. Place alignment marks on the universal joint assembly - steering.
  NOTE:
  Place alignment marks on the following positions.
  - Between the column assembly - steering and the universal joint assembly - steering
  - Between the steering gearbox assembly and the universal joint assembly - steering
2. Remove the bolt, and remove the universal joint assembly - steering.

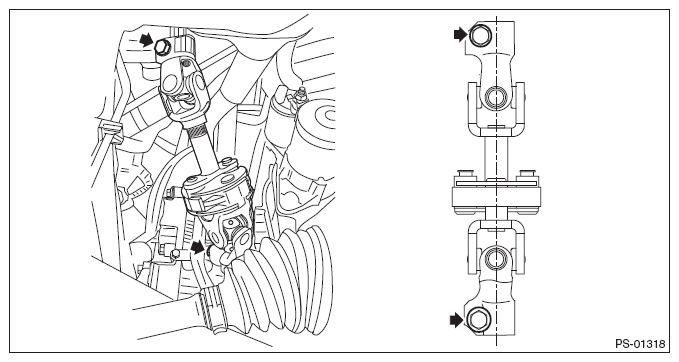

Fig 2: Locating Steering Universal Joint Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Prevent the steering wheel from turning using the seat belt.

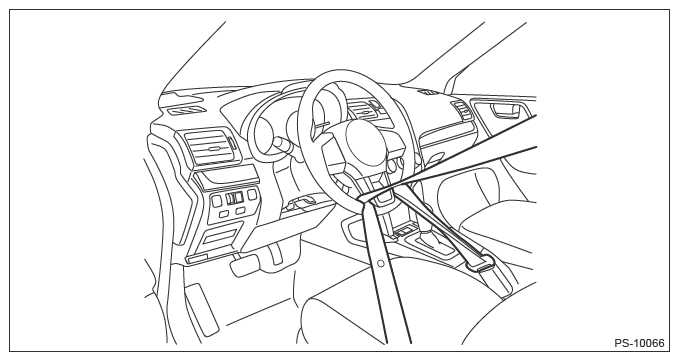

Fig 3: Securing Steering Wheel Using Seat Belt

Courtesy of SUBARU OF AMERICA, INC.
