Rotational Resistance Of Gearbox

Using the ST, measure the rotational resistance of the steering gearbox assembly.
Preparation tool:

ST: SPANNER (34099PA100)

Service limit:

Maximum allowable resistance: 18.3 N (1.9 kgf, 4.1 lbf) or less

Difference between right and left rotational resistance: 20% or less

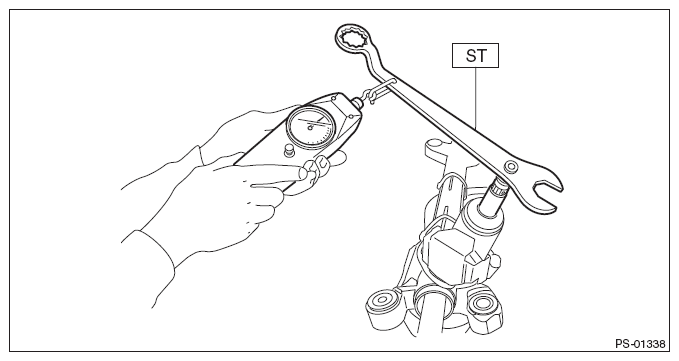

Fig 1: Checking Steering Gearbox Assembly Rotational Resistance Using Special Tool

G08316088

Courtesy of SUBARU OF AMERICA, INC.
