Input Shaft Play

NOTE:

When fixing the steering gearbox assembly in a vise, apply a wooden piece on the flange portion.
When fixing the magnet stand in the steering gearbox assembly, perform the following procedure.
- Fix the iron plate on the flange portion using a c-clamp, and place the magnet stand on the iron plate.
- Use bolts and nuts to fix directly on the flange portion of the steering gearbox assembly. (Secure the gauge firmly on the gearbox body. (Avoid the input shaft and the rack shaft.))

In radial direction:

Limit of both amplitudes: 0.6 mm (0.024 in) or less

Condition: Input shaft tip P = 98 N (10 kgf, 22 lbf)

In axial direction:

Service limit: 0.27 mm (0.0106 in) or less

Condition: Input shaft tip P = 20 - 49 N (2 - 5 kgf, 4 - 11 lbf)

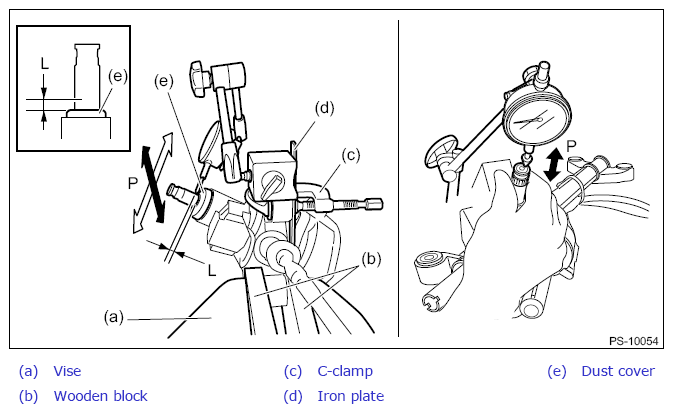

Fig 1: Checking Steering Gearbox Assembly Input Shaft Play

Courtesy of SUBARU OF AMERICA, INC.
