Power Steering System (Diagnostics): Electrical Component Location: Location

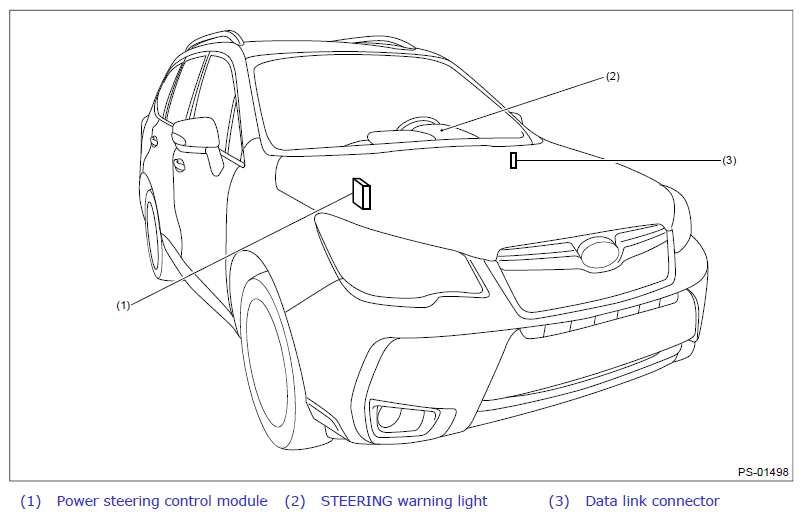

Fig 1: Power Steering Electrical Components Location (1 Of 2)
G11270948Courtesy of SUBARU OF AMERICA, INC.

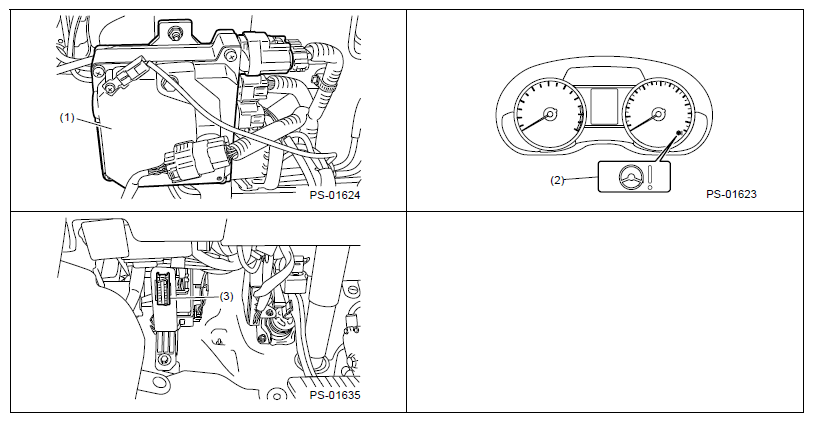

Fig 2: Power Steering Electrical Components Location (2 Of 2)
G11270949Courtesy of SUBARU OF AMERICA, INC.
