Seat Belt Outer - Rear RH & LH

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
Airbag system satellite safing sensor is located in the lower of the rear seat cushion center. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.

Turn the ignition switch to OFF.
Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the rear seat cushion assembly. Ref. to SEATS>Rear Seat>REMOVAL .
Release the clips and claws, and then remove the cover side sill - rear INN.
CAUTION: Do not pull with excessive force. Doing so may damage the claws of the cover side sill - rear INN.

Fig 1: Releasing Clips And Claws Of Cover Side Sill - Rear INN
Courtesy of SUBARU OF AMERICA, INC.

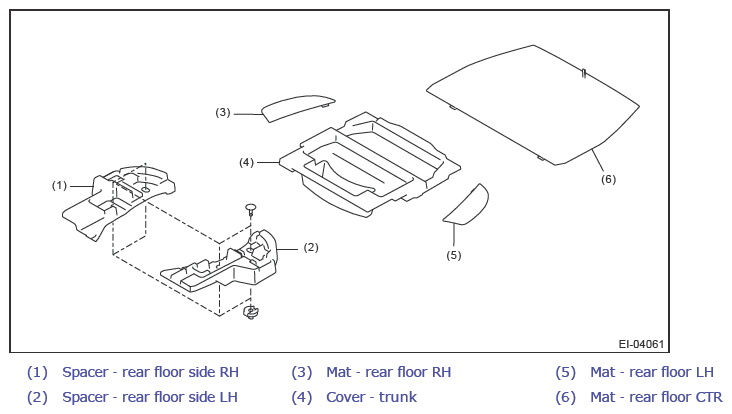

Remove the mat - rear floor, spacer - rear floor, and cover - trunk.

Fig 2: Removing Mat - Rear Floor, Spacer - Rear Floor, And Cover - Trunk
Courtesy of SUBARU OF AMERICA, INC.
Remove the clips, and remove the trim panel - rear skirt.
CAUTION: Do not lift the trim panel - rear skirt from the edge. Doing so may damage the part.

Fig 3: Removing Clips And Trim Panel - Rear Skirt
Courtesy of SUBARU OF AMERICA, INC.
Remove the trim panel - rear apron.
1. Open the cover, remove the bolts, and remove the hook - luggage. (2 places)
2. Remove the screws, and release the clips.
3. Disconnect the connectors and remove the trim panel - rear apron.
Fig 4: Locating Trim Panel - Rear Apron Screws And Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the trim panel - rear quarter pillar UPR.
1. Disconnect the rod - power rear gate before removing the trim panel - rear quarter pillar UPR LH. (Only for models with power rear gate)
  CAUTION: For the disconnection procedure of the rod - power rear gate, refer to "REMOVAL", "Power Rear Gate Rod" in the "POWER REAR GATE" information and observe the precautions for removal. Ref. to REMOVAL

  Fig 5: Disconnecting Rod
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the lower anchor bolts of rear seat belts.

  Fig 6: Locating Lower Anchor Bolts Of Rear Seat Belts
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the screws and clips, and remove the trim panel - rear quarter pillar UPR.
Fig 7: Locating Trim Panel - Rear Quarter Pillar Screws And Clips
Courtesy of SUBARU OF AMERICA, INC.

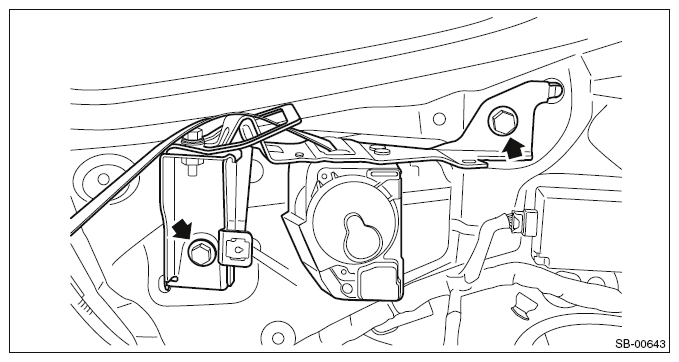

Remove the bolts, and remove the seat belt outer - rear.

Fig 8: Locating Seat Belt Outer - Rear Bolts

Courtesy of SUBARU OF AMERICA, INC.
