Seat Belt - Ctr RH And LH
CAUTION:
- Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
- Airbag system satellite safing sensor is located in the lower of the rear seat cushion center. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.
- Turn the ignition switch to OFF.
- Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY
.NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Remove the rear seat cushion assembly. Ref. to SEATS>Rear Seat>REMOVAL .

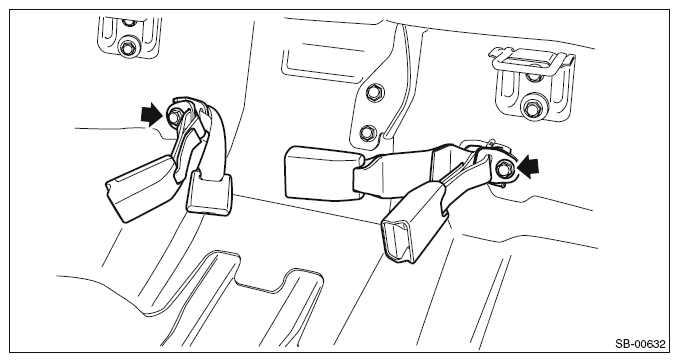

- Remove the bolts, and remove the seat belt - CTR RH and LH.
