Diagnosis start condition

When the ignition voltage is 8 V - 16 V

DTC detecting condition:

• Occupant detection sensor is faulty.
• Occupant detection sensor circuit is open, shorted between terminals, shorted to power supply or shorted to ground.
• Seat heater circuit is open.
• Occupant detection control module is faulty.

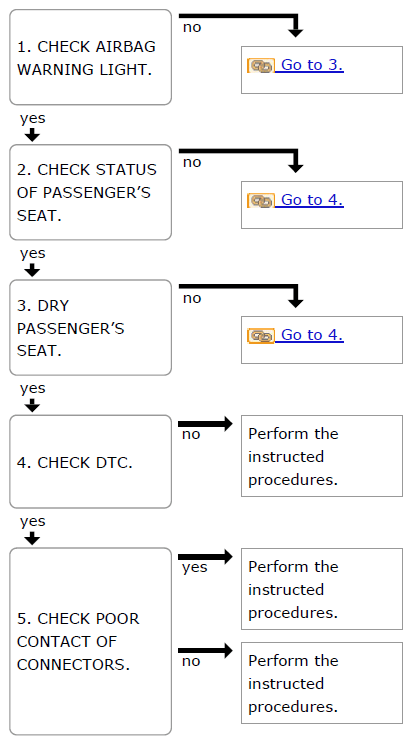

Fig 1: Occupant Detection Sensor Mat Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
