DTC B1650 Occupant Detection System Malfunction: Wiring diagram

Occupant detection system Ref. to WIRING SYSTEM>Occupant Detection System>WIRING DIAGRAM .

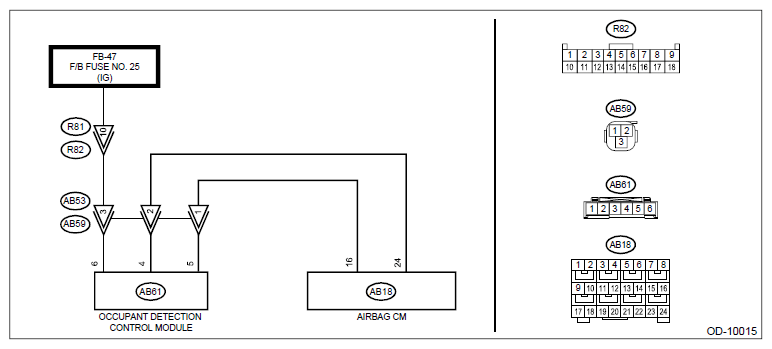

Fig 1: Occupant Detection System Malfunction System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to AIRBAG(DIAGNOSTICS)>General Description>CAUTION .

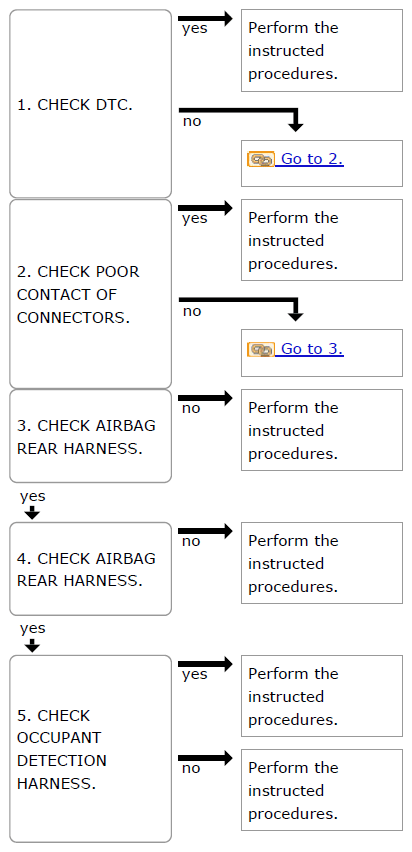

Fig 2: Occupant Detection System Malfunction Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
