Status Of Passenger's Seat

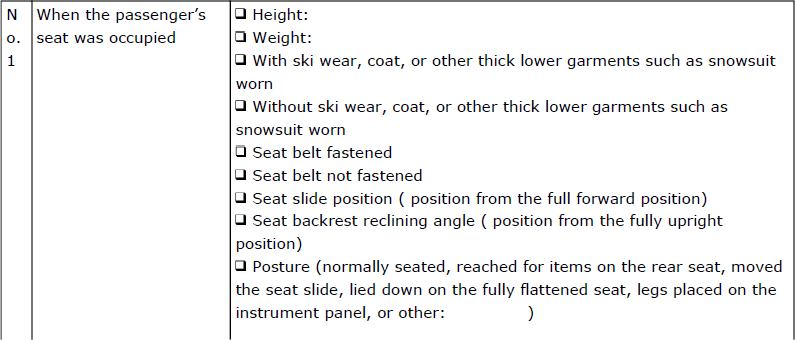

Fig 1: Passenger Seat Status - Customer Interview Checklist (1 Of 2)
G10789462Courtesy of SUBARU OF AMERICA, INC.

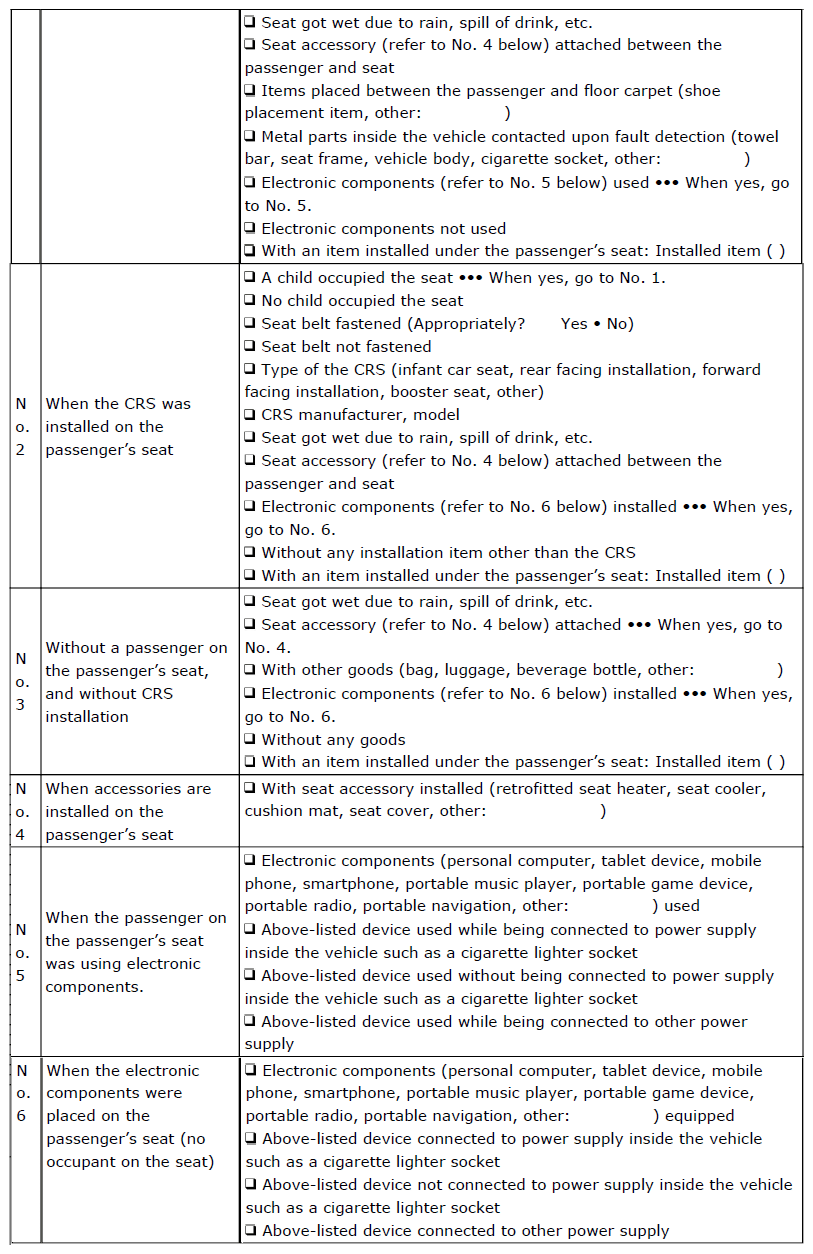

Fig 2: Passenger Seat Status - Customer Interview Checklist (2 Of 2)
G10789463Courtesy of SUBARU OF AMERICA, INC.
