Conditions Of Malfunction

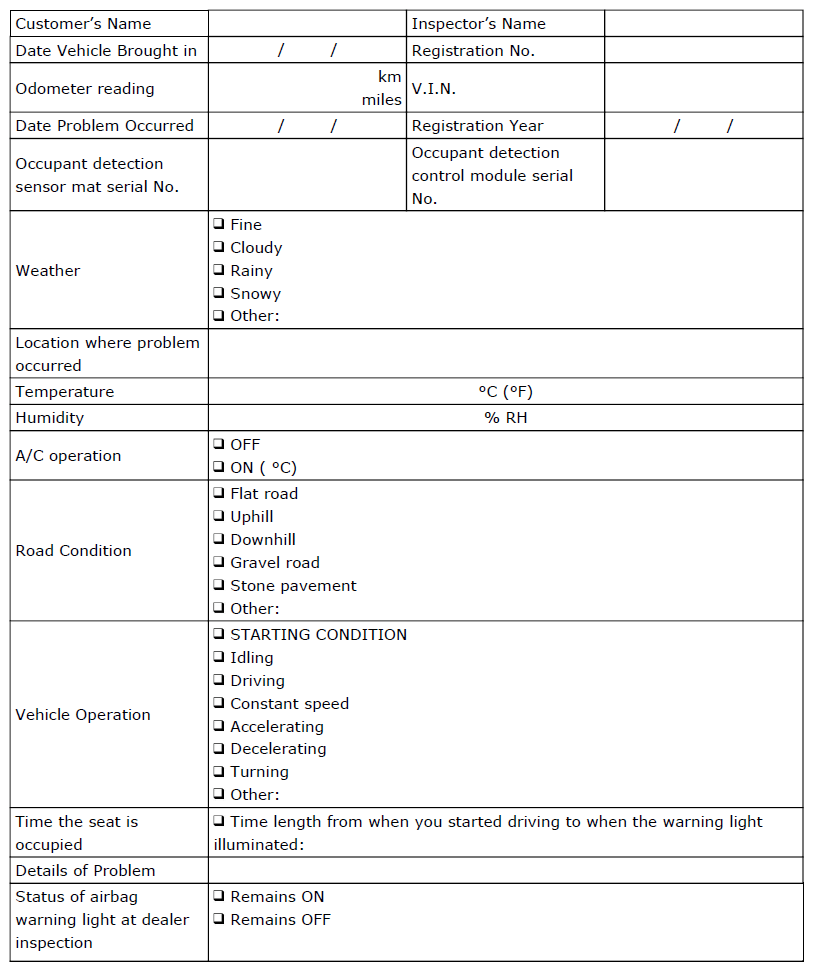

Fig 1: Malfunction Conditions - Customer Interview Checklist (1 Of 3)
G10789459Courtesy of SUBARU OF AMERICA, INC.

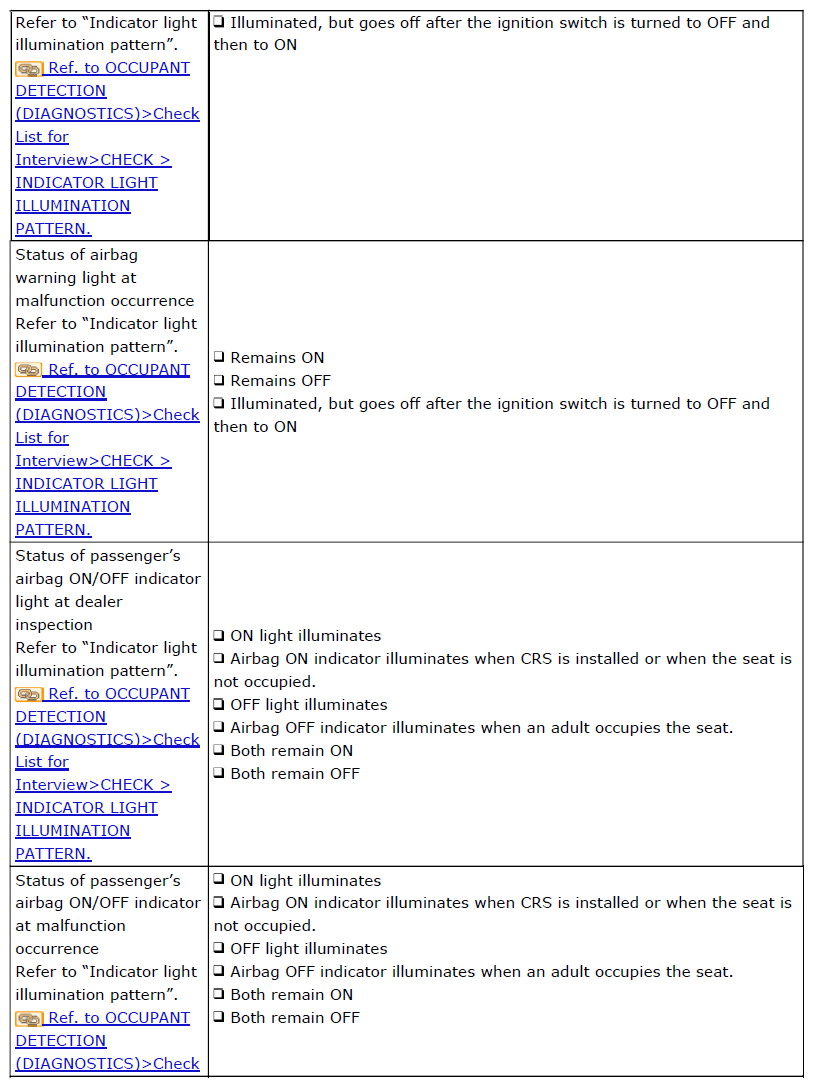

Fig 2: Malfunction Conditions - Customer Interview Checklist (2 Of 3)
G10789460Courtesy of SUBARU OF AMERICA, INC.

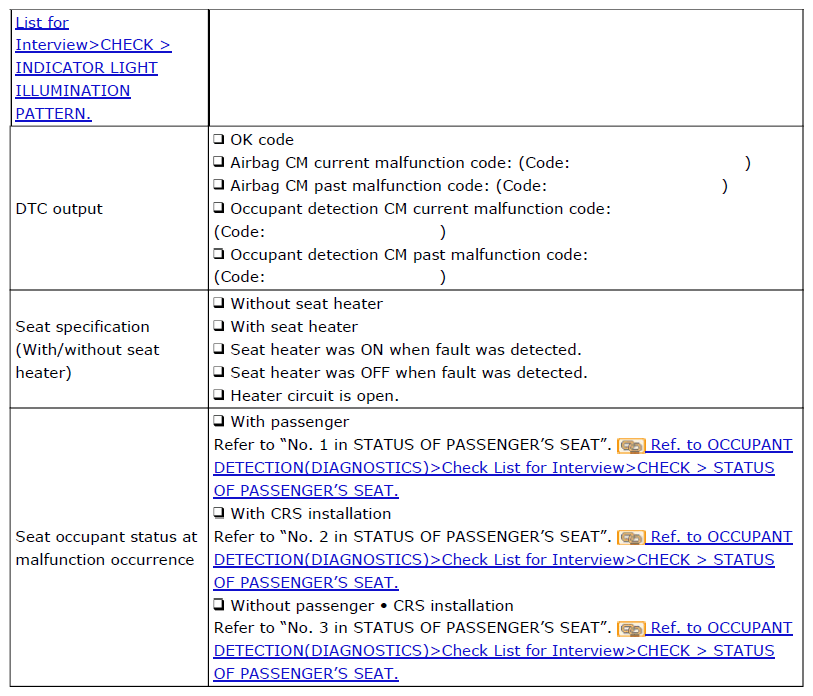

Fig 3: Malfunction Conditions - Customer Interview Checklist (3 Of 3)
G10789461Courtesy of SUBARU OF AMERICA, INC.
