Satellite Safing Sensor: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  3. Remove the rear seat cushion assembly. Ref. to SEATS>Rear Seat>REMOVAL .
  4. Remove the satellite safing sensor.
    1. Remove the clip, and remove the cover - satellite safing.
    2. Remove the bolts and then remove the satellite safing sensor. Ref. to AIRBAG SYSTEM>Airbag Connector>PROCEDURE>FRONT SUB SENSOR, FRONT DOOR IMPACT SENSOR AND SATELLITE SAFING SENSOR .

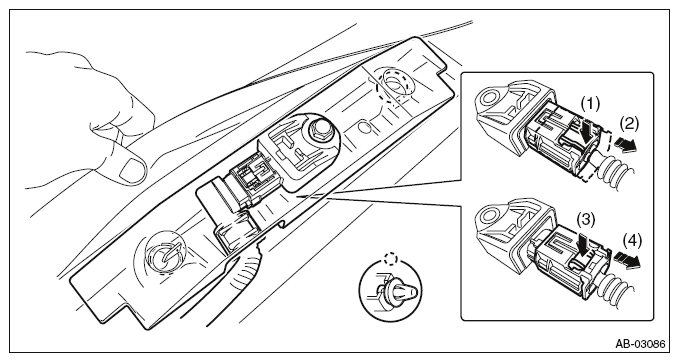

Fig 1: Removing Satellite Safing Sensor Connector
G09484030Courtesy of SUBARU OF AMERICA, INC.
