Roll Connector: Adjustment

CAUTION:

Do not rotate the roll connector to more than the specified number of turns. Otherwise, the roll connector internal wire may be broken.
When determining the end stop, rotate the connector slowly without applying excessive force. Applying excessive force at the end stop may break the internal wire.

Check that front wheels are positioned in straight ahead direction.
Rotate the roll connector counterclockwise until it stops.
Align the position of the roll connector.
- Model without steering heater
  Rotate the roll connector clockwise approx. 2.5 turns until " " marks are aligned.

  NOTE: When the roll connector comes to the center position, the orange roller (b) can be seen from the sight glass (a).

  Fig 1: Identifying Roller Connector Orange Roller And Sight Glass
  Courtesy of SUBARU OF AMERICA, INC.
- Model with steering heater
  Rotate the roll connector clockwise approx. 2.5 turns until " " marks are aligned.

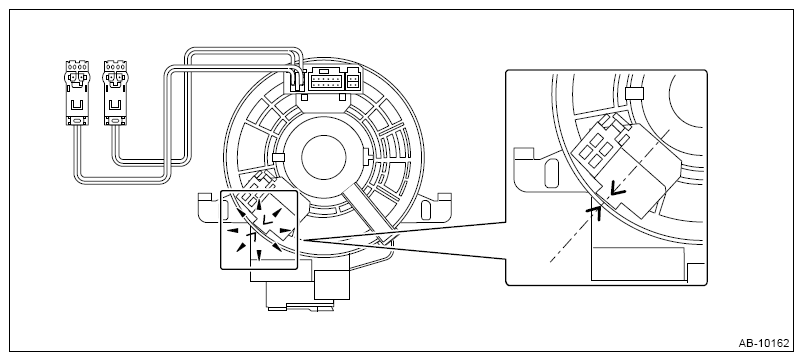

Fig 2: Identifying Roll Connector Marks Alignment

G11268402

Courtesy of SUBARU OF AMERICA, INC.
