Front Sub Sensor

If the section of vehicle as shown in the figure is damaged, check the following items and replace the damaged parts with new parts.

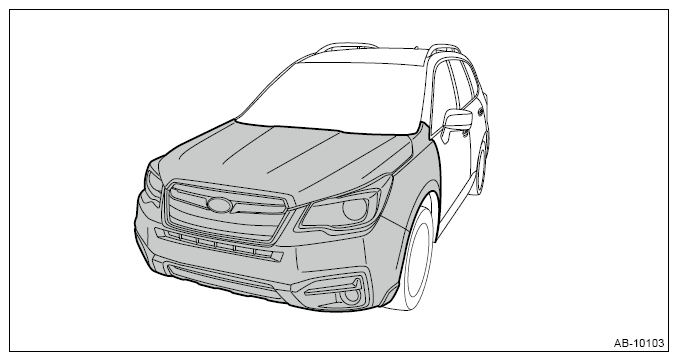

Fig 1: Locating Front Sub Sensor Area

Courtesy of SUBARU OF AMERICA, INC.

• Front sub sensor is cracked or deformed.
• Connector is scratched, cracked or deformed.
• Driver's airbag module, knee airbag module or passenger's airbag module has been activated.
