Home >> Subaru >> 2017 >> Forester 2.0XT Touring >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Air Bag System >> General Description >> Components With Torque Specifications >> Side Airbag Module

Side Airbag Module

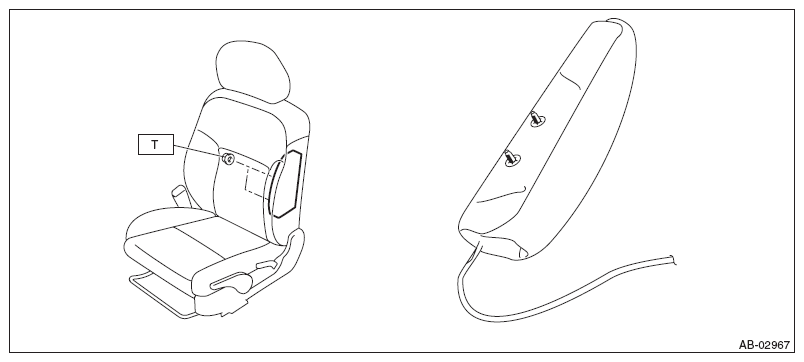

Fig 1: Identifying Side Airbag Module With Torque Specifications
G08551880Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6 (0.61, 4.4)
