Satellite SAFING Sensor

CAUTION: Do not reuse mounting bolts and nuts.

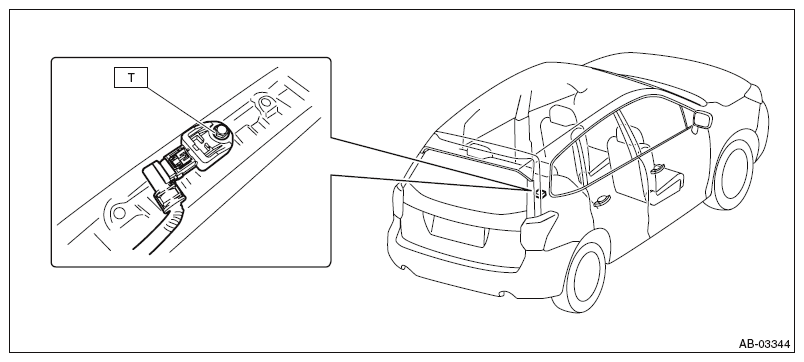

Fig 1: Identifying Satellite Safing Sensor With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)
