Home >> Subaru >> 2017 >> Forester 2.0XT Touring >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Air Bag System >> General Description >> Components With Torque Specifications >> Notes

Components With Torque Specifications: Notes

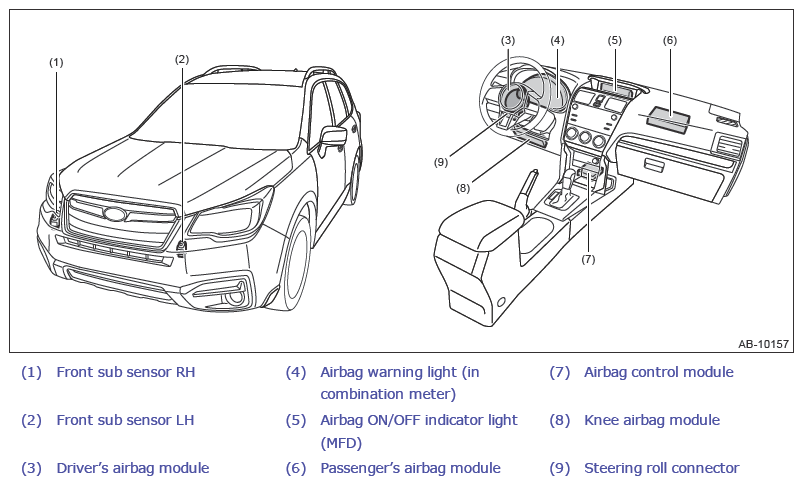

Fig 1: Identifying Airbag System Components Location (1 Of 2)
G11268305Courtesy of SUBARU OF AMERICA, INC.

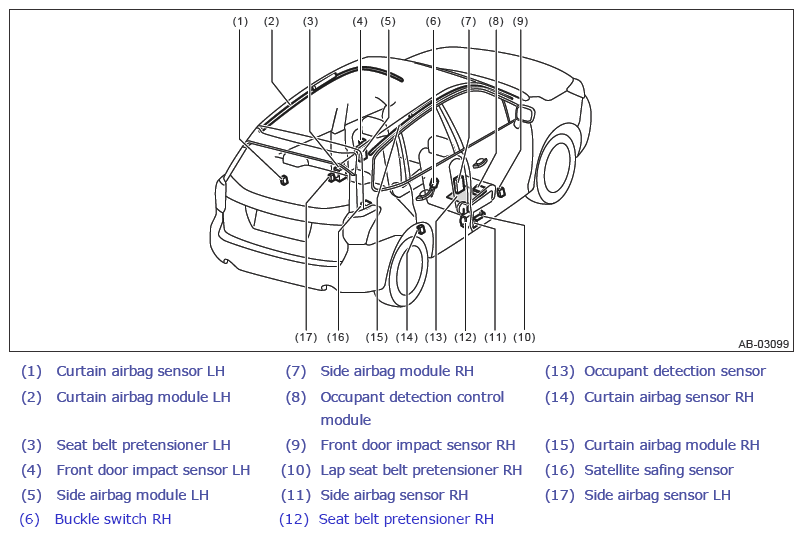

Fig 2: Identifying Airbag System Components Location (2 Of 2)
G11268306Courtesy of SUBARU OF AMERICA, INC.
