Knee Airbag Module

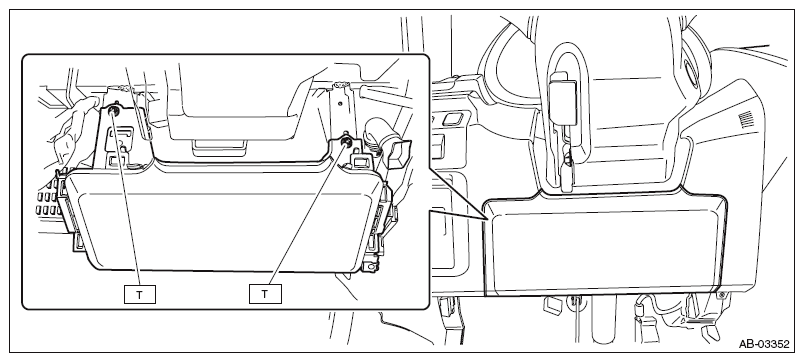

Fig 1: Identifying Knee Airbag Module With Torque Specifications

G09483879

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)
