How To Use Probe

Insert the probe into the harness hole, and contact it with the terminal.

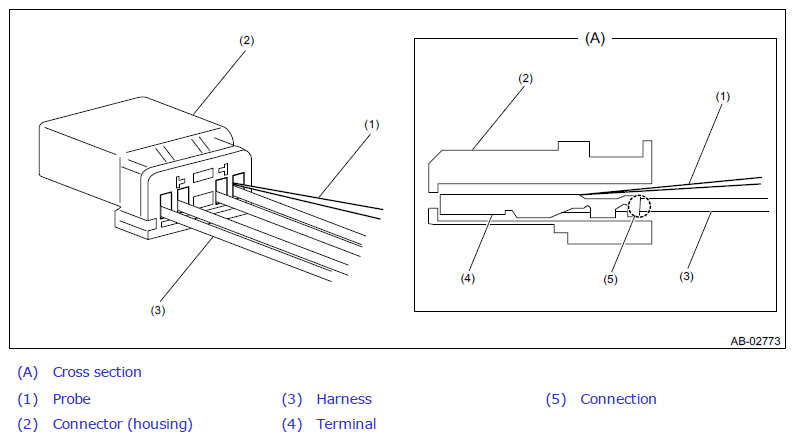

Fig 1: Inserting Probe Into Harness Hole

Courtesy of SUBARU OF AMERICA, INC.

CAUTION:

Do not insert the probe forcibly.
Be careful not to contact it to the connection (5) between the terminal and harness. (Harness will come off easily from connector if doing so.)
