Diagnostic Procedure with Diagnostic Trouble Code (DTC): Wiring diagram

Airbag system Ref. to WIRING SYSTEM>Airbag System>WIRING DIAGRAM .

Fig 1: Short In Front P/T RH (To +B) System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to AIRBAG (DIAGNOSTICS)>General Description>CAUTION .

Fig 2: Short In Front P/T RH (To +B) Diagnostics Flowchart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

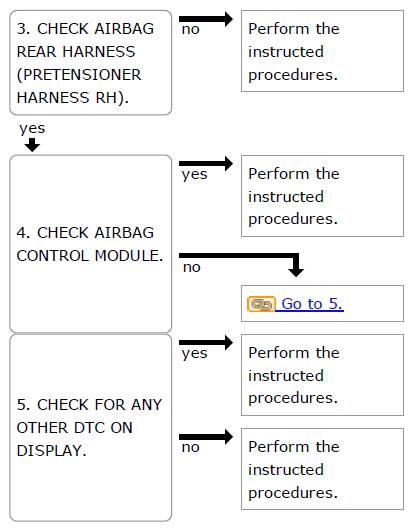

Fig 3: Short In Front P/T RH (To +B) Diagnostics Flowchart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
